Modern transit solutions are celebrated for their fast and efficient systems. They are equally innovative, helping industries overcome the contemporary challenges in manufacturing and production.
Two of these innovative approaches are magnetic levitation and the electric monorail system. While the former uses electromagnetic force, the latter uses electric motors. That being said, both systems have unique advantages that set them apart.
This blog takes a look at the key differences between the two and the benefits they offer.
What is Magnetic Levitation?
Magnetic levitation, also known as maglev, uses powerful magnets to lift and propel a vehicle without physical contact with its guideway. These systems are engineered to eliminate friction while allowing for high-speed operations and lesser mechanical wear.
Maglev systems use the magnets’ attractive (unlike poles) and repulsive (like poles) forces. This system has two components: track and vehicle. While the track contains electromagnets, the car has magnets or magnetic materials. By controlling the magnetic fields of these components, the vehicle is levitated and guided along the track.

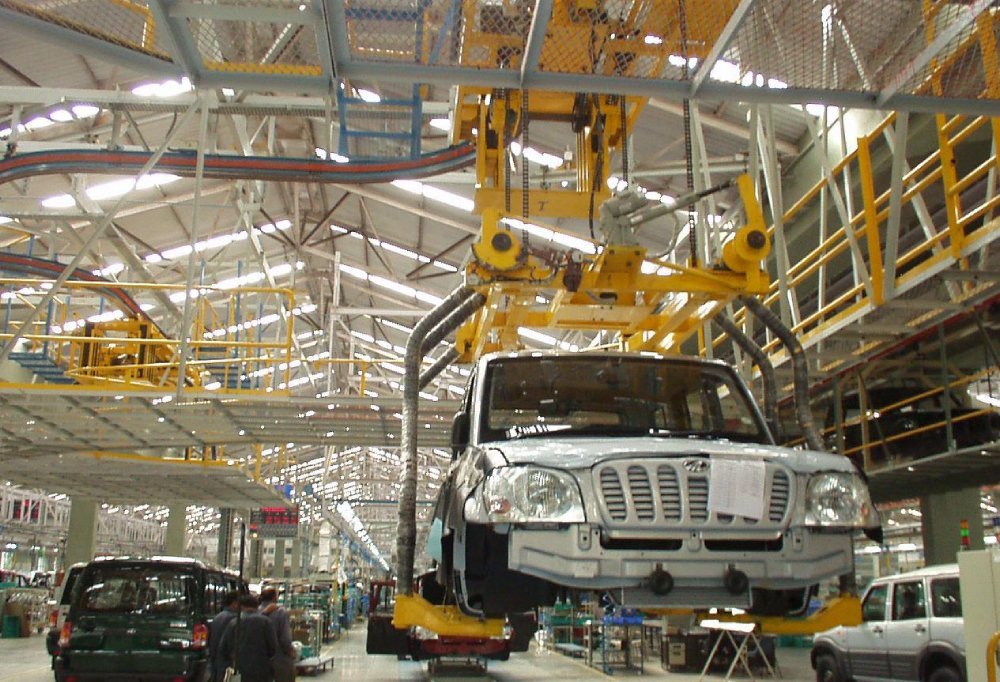

What is an Electric Monorail System?
Electric monorail systems are overhead systems that carry individual parts to different workstations. They feature individually driven carriers that move independently on the system. The track consists of joined section rails and integrated busbars. The collector wires on carrier rails supply the vehicle with power and control.
The good part about an electric monorail system is the choice of extending the integrated busbars to the desired length. Moreover, the branch points are implemented on the line with the help of switch points. Finally, the motorized carriers with on-board control are equipped to travel independently while coordinating with other carriers. It is an obvious choice when you are looking at interconnecting large spatial distances or different buildings logistically.
Key Difference Between the Two
Let’s take a look at the difference between maglev and electric monorail systems now.
| Magnetic Levitation System | Electric Monorail System |
| Maglev systems use electromagnetic forces to suspend vehicles. There is no physical contact with the guideway. | Electric Monorails use wheels running on a single rail. |
| Maglev technology demands dedicated, purpose-built guideways with extremely tight tolerances. | Electric Monorails can often be adapted to work in existing or minimally modified corridors. |
| Maglev systems are capable of higher speeds and a smoother ride. | Electric Monorails generally offer lower speeds but are well-suited for routes where acceleration and deceleration need not be extreme. |
| Maglev systems come with higher upfront construction costs. However, they tend to benefit from reduced mechanical wear. | Electric Monorails have lower capital costs but may require more regular maintenance due to physical contact between wheels and rail. |
Benefits of Magnetic Levitation
Below is a quick overview of the benefits of magnetic levitation:
- Rapid acceleration
- Can achieve higher speeds
- Little or no noise and vibration due to lack of mechanical contact
- More comfortable and less disruptive transit solution
- Experiences significantly less wear and tear
- Lower long-term maintenance
Benefits of Electric Monorail System
Below is a quick overview of the benefits of installing an electric monorail system:
- Simpler designs that are easy to integrate into the existing infrastructure
- Requires less space since it is a single rail configuration
- Their modular designs can be easily expanded or integrated with other transit modules
- Balanced solution with good energy efficiency and operational reliability
- Do well with well-understood maintenance practices
- Rapid and precise point-to-point movement
- Features carriers with on-board intelligence and programmable controls
- Well-suited for components with big sizes, heavyweight, and complex geometry
Conclusion
While maglev technology offers high-speed performance and lower mechanical wear, its need for a dedicated, high-precision environment drives up the initial costs. On the other hand, electric monorail systems offer more cost-effective, compact, and flexible solutions.
Our Electric Monorail Systems can travel at high speeds and operate with very high stopping accuracy. They can handle loads ranging from 500 – 1500 kgs. Moreover, they can be seamlessly integrated with SCADA and other control systems.
Get in contact with Automag India to design your own quiet, precise conveyor system that can be programmed to halt at designated points along the track as per your wishes.
